Student Grade Tracker in Excel: GPA Calculation and Charts

Managing student grades effectively is crucial for both students and educators. Excel, with its versatility and calculation capabilities, provides an ideal platform for creating a student grade tracker that can automatically calculate GPA and visualize performance through charts. This document outlines how to build such a tracker, focusing on functionality, formulas, and chart creation.

I. Setting up the Spreadsheet

The first step involves structuring the Excel spreadsheet. Consider these key columns:

• Student ID: A unique identifier for each student.
• Student Name: The full name of the student.
• Course Name: The name of the course.
• Credit Hours: The number of credit hours for the course. This is crucial for weighted GPA calculations.
• Grade: The letter grade received in the course (e.g., A, B, C, D, F).
• Numeric Grade: A numeric representation of the letter grade (e.g., A=4, B=3, C=2, D=1, F=0). This column will be calculated based on the “Grade” column.
• Grade Points: The product of credit hours and the numeric grade. This is used to calculate the GPA. This column will also be calculated.

You might also want to include columns for:

• Semester: To track grades across different semesters.
• Instructor: To identify the instructor for each course.
• Notes: For any specific notes regarding the course or the student’s performance.

Begin by entering the column headers in the first row of your spreadsheet. Format the headers (e.g., bold, larger font) to make them easily distinguishable.

II. Implementing Formulas for Grade Conversion and GPA Calculation

The heart of the grade tracker lies in the formulas used to convert letter grades to numeric grades and calculate the GPA.

A. Converting Letter Grades to Numeric Grades

We’ll use the VLOOKUP or IF functions to convert letter grades (A, B, C, D, F) to their corresponding numeric values (4, 3, 2, 1, 0). The VLOOKUP function is generally cleaner if you have many grade possibilities (e.g., A+, A-, B+, B-) while nested IF statements are sufficient for a simple A-F scale.

Using VLOOKUP:

1. Create a separate table somewhere in your spreadsheet (e.g., on a different sheet) that maps letter grades to numeric grades. For example:


   Letter Grade	Numeric Grade
   A	4
   B	3
   C	2
   D	1
   F	0

2. Let’s say your letter grade is in column E (e.g., E2 for the first student’s first course) and your grade conversion table is in cells H1:I5 on Sheet2. Then, in the “Numeric Grade” column (let’s say it’s F), in cell F2, enter the following formula: =VLOOKUP(E2,Sheet2!H1:I5,2,FALSE)
   • E2: The cell containing the letter grade.
   • Sheet2!H1:I5: The range containing the letter grade conversion table. Make sure to adjust this to your actual sheet name and cell range.
   • 2: Specifies that you want to retrieve the value from the second column of the table (the numeric grade).
   • FALSE: Ensures an exact match is found for the letter grade. If no exact match is found, it will return an error.
3. Drag the formula down to apply it to all rows.

Using Nested IF Statements:

In the “Numeric Grade” column (let’s say it’s F), in cell F2, enter the following formula, assuming the letter grade is in cell E2:

=IF(E2="A",4,IF(E2="B",3,IF(E2="C",2,IF(E2="D",1,IF(E2="F",0,"")))))

• This formula checks the letter grade in cell E2. If it’s “A”, it returns 4. If not, it checks if it’s “B”, and so on. If none of the conditions are met (e.g., the cell is empty), it returns an empty string (“”).
• Drag the formula down to apply it to all rows.

B. Calculating Grade Points

The “Grade Points” column is calculated by multiplying the “Credit Hours” by the “Numeric Grade”. Assuming “Credit Hours” is in column D and “Numeric Grade” is in column F, the formula in cell G2 (where “Grade Points” is located) would be:

=D2*F2

Drag this formula down to calculate grade points for all courses.

C. Calculating GPA

To calculate the GPA, you need to sum the total grade points and divide it by the total credit hours. You’ll typically want to calculate the GPA *per student*. This can be done in several ways:

1. Using SUMIF and SUMIFS:

This method allows you to calculate the GPA for each student directly within the main data table. Let’s say the Student ID is in column A. You’ll need a cell where you want the GPA to be displayed for each student (e.g., column H). In cell H2 (next to the first student’s first entry), enter the following formula:

=(SUMIF(A:A,A2,G:G))/(SUMIF(A:A,A2,D:D))

• SUMIF(A:A,A2,G:G): Sums the “Grade Points” (column G) for all rows where the “Student ID” (column A) matches the Student ID in the current row (A2).
• SUMIF(A:A,A2,D:D): Sums the “Credit Hours” (column D) for all rows where the “Student ID” (column A) matches the Student ID in the current row (A2).
• The division then calculates the GPA.

Drag this formula down to apply to all rows. This will calculate the GPA for each student on each *row*, which is redundant. You can address this by adding an IF statement to only display the GPA once per student. In cell H2, try this instead:

=IF(A2<>A1,(SUMIF(A:A,A2,G:G))/(SUMIF(A:A,A2,D:D)),"")

This will only calculate and display the GPA if the student ID in the current row is different from the student ID in the previous row, leaving the GPA cell blank otherwise.

2. Using a Pivot Table:

Pivot tables are an excellent way to summarize data and are well-suited for GPA calculation when you have a large dataset.

1. Select your entire data range (including headers).
2. Go to “Insert” -> “PivotTable”.
3. Choose where you want the pivot table to be placed (e.g., a new worksheet).
4. In the PivotTable Fields pane, drag “Student ID” (or “Student Name”) to the “Rows” area.
5. Drag “Grade Points” to the “Values” area. By default, it should show “Sum of Grade Points”. If not, click on the dropdown next to “Grade Points” and select “Value Field Settings”. Change “Summarize value field by” to “Sum”.
6. Drag “Credit Hours” to the “Values” area. Again, ensure it’s summarizing by “Sum”.
7. Create a “Calculated Field” to calculate the GPA. Go to “PivotTable Analyze” (or “Options” depending on your Excel version) -> “Fields, Items, & Sets” -> “Calculated Field”.
8. Name the field “GPA”. In the formula box, enter ='Sum of Grade Points'/'Sum of Credit Hours' (replace ‘Sum of Grade Points’ and ‘Sum of Credit Hours’ with the exact names of your fields from the pivot table). Click “Add” and then “OK”.
9. The pivot table will now display the GPA for each student.

III. Visualizing Data with Charts

Charts provide a visual representation of student performance, making it easier to identify trends and areas for improvement.

A. GPA Distribution Chart

A histogram or column chart can be used to visualize the distribution of GPAs among students.

1. Create a separate table that summarizes the GPA data. This can be done manually or using functions like COUNTIF to count the number of students within specific GPA ranges (e.g., 3.5-4.0, 3.0-3.49, etc.).
2. Select the GPA ranges and their corresponding counts.
3. Go to “Insert” -> “Charts” and choose a column chart or histogram.
4. Customize the chart with appropriate titles, labels, and axes to make it clear and informative.

B. Grade Trend Chart

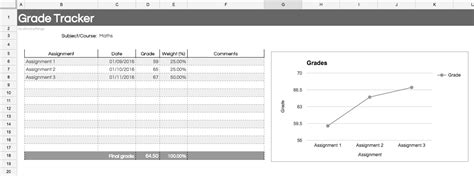

A line chart can be used to track a student’s grades over time (e.g., across semesters). This requires having a “Semester” column in your data.

1. Create a pivot table with “Student ID” in the “Filters” area and “Semester” in the “Rows” area, and “GPA” in the “Values” area. Make sure GPA is calculated correctly.
2. Select the pivot table data (Semester and GPA).
3. Go to “Insert” -> “Charts” and choose a line chart.
4. Filter the chart to display the grade trend for a specific student by selecting their ID in the filter.

C. Course Performance Chart

A bar chart can be used to compare student performance across different courses. You can use the numeric grade or the grade points for this.

1. Create a pivot table with “Course Name” in the “Rows” area and “Average of Numeric Grade” or “Average of Grade Points” in the “Values” area.
2. Select the pivot table data (Course Name and Average Grade).
3. Go to “Insert” -> “Charts” and choose a bar chart.
4. Customize the chart with appropriate titles, labels, and axes.

IV. Enhancements and Considerations

• Conditional Formatting: Use conditional formatting to highlight students with low GPAs or failing grades, making it easier to identify students who need assistance.
• Data Validation: Use data validation to ensure that only valid letter grades are entered in the “Grade” column, preventing errors in calculations.
• Protecting the Spreadsheet: Protect the spreadsheet to prevent accidental modification of formulas and data.
• Regular Backups: Regularly back up your spreadsheet to prevent data loss.
• Weighting Grades: If different assignments or tests within a course have different weights, you’ll need to adjust the formulas to account for these weights. This will require additional columns for assignment names, weights, and scores, and a more complex formula to calculate the weighted average grade for each course.
• Handling Incomplete Grades: Decide how to handle incomplete grades. You might assign a temporary numeric value or exclude them from GPA calculations until they are resolved.

By following these steps, you can create a powerful and user-friendly student grade tracker in Excel that automates GPA calculations and provides valuable insights into student performance. Remember to tailor the spreadsheet to your specific needs and preferences.
