Project Management Tracker in Excel with Gantt Chart and Deadlines

Effective project management is crucial for successful project delivery. A well-structured project management tracker, implemented in a widely accessible tool like Microsoft Excel, can significantly enhance organization, collaboration, and monitoring of project progress. This document outlines the key elements of creating a robust project management tracker in Excel, incorporating a Gantt chart and deadline management capabilities.

Benefits of Using Excel for Project Management

While dedicated project management software offers advanced features, Excel provides several advantages for smaller projects or teams with limited resources:

• Accessibility: Most users are familiar with Excel, reducing the learning curve.
• Cost-Effectiveness: Excel is often already available, eliminating the need for additional software purchases.
• Customization: Excel offers flexibility to tailor the tracker to specific project needs.
• Collaboration: Shared workbooks facilitate team collaboration (though version control is essential).
• Reporting: Excel’s charting capabilities enable quick and easy creation of visual reports.

Designing the Excel Project Management Tracker

The foundation of a successful project management tracker lies in its structure. Here’s a recommended approach:

Worksheet Structure

Consider using multiple worksheets within the Excel workbook to organize data:

• Task List: This is the core worksheet, containing detailed information about each project task.
• Gantt Chart: A visual representation of the project timeline, derived from the Task List.
• Resources: A list of team members or resources involved, with their availability and roles.
• Dashboard: An overview of key project metrics, such as progress, budget, and risks.
• Settings (Optional): For storing project-specific configuration values (e.g., working days, holidays).

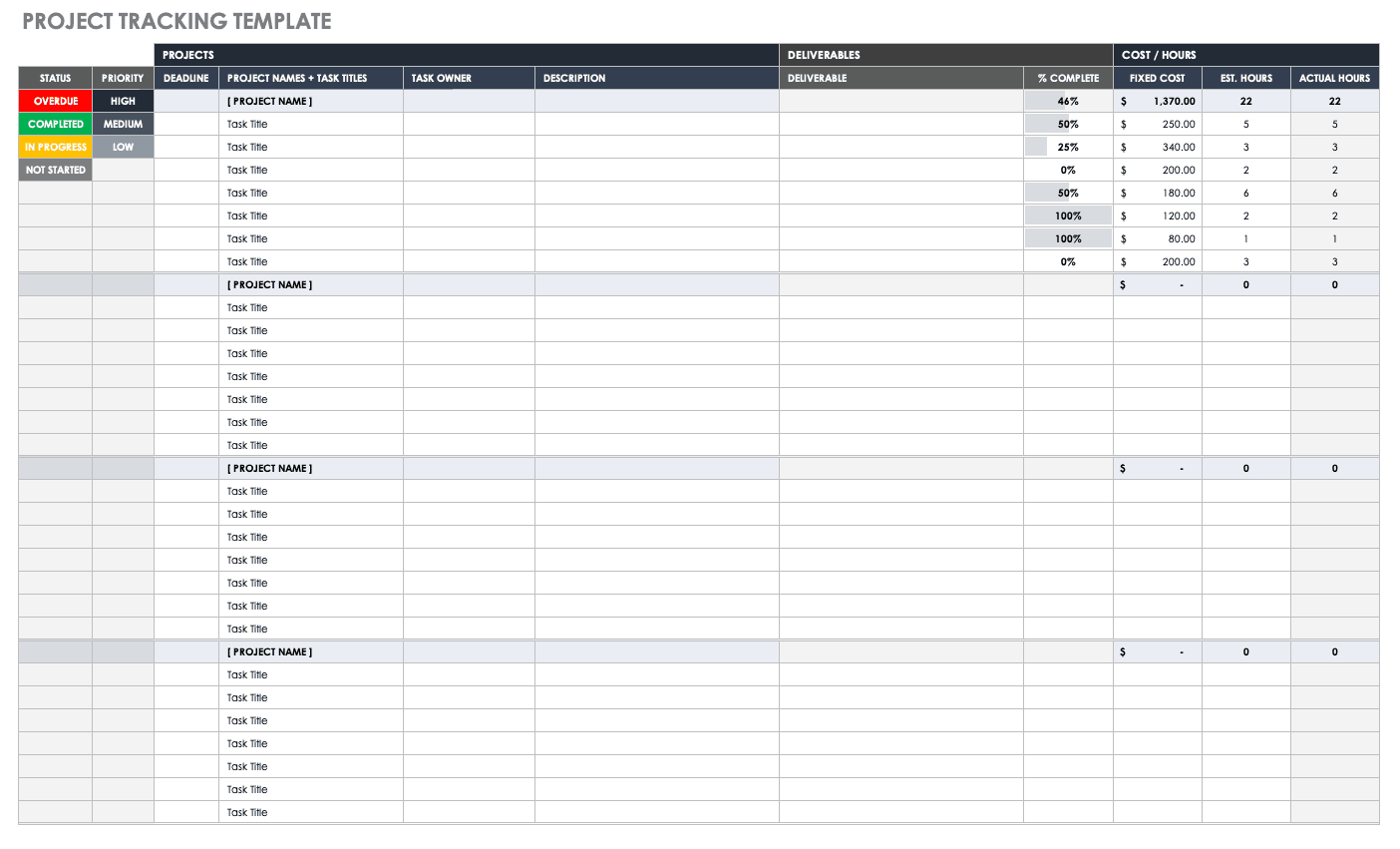

Task List Columns

The Task List worksheet should include the following columns:

• Task ID: A unique identifier for each task (e.g., PROJ-TASK-001).
• Task Name: A brief description of the task (e.g., “Design User Interface”).
• Task Description: A more detailed explanation of the task requirements.
• Category/Phase: Group tasks into logical categories or project phases (e.g., “Planning,” “Design,” “Development,” “Testing”).
• Assigned To: The team member responsible for completing the task (use a dropdown list referencing the Resources worksheet).
• Start Date: The planned start date of the task.
• End Date: The planned completion date of the task.
• Duration (Days): The estimated duration of the task, calculated as End Date – Start Date + 1 (to include both start and end days).
• Predecessors: Identifies tasks that must be completed before this task can begin (using Task IDs). Enabling dependencies is crucial for realistic scheduling.
• Priority: Indicates the importance of the task (e.g., High, Medium, Low).
• Status: The current status of the task (e.g., Not Started, In Progress, Completed, On Hold). Use data validation to create a dropdown list for consistency.
• % Complete: The percentage of the task that has been completed (e.g., 0%, 25%, 50%, 75%, 100%). This is vital for tracking progress.
• Actual Start Date (Optional): The date the task actually started.
• Actual End Date (Optional): The date the task was actually completed.
• Notes/Comments (Optional): Any relevant notes or comments about the task.

Creating the Gantt Chart

The Gantt chart provides a visual representation of the project timeline, making it easier to understand task dependencies and overall project progress.

Steps to Create a Gantt Chart in Excel:

1. Set up the Data: Ensure the Task List worksheet contains accurate Start Dates and Durations for each task.
2. Create a Stacked Bar Chart:
   • Select the Task Name and Start Date columns from the Task List.
   • Go to the “Insert” tab and choose a “Stacked Bar” chart.
3. Format the Chart:
   • Right-click on the Start Date series (the blue bars) in the chart and choose “Format Data Series.”
   • In the Format Data Series pane, set the “Fill” to “No Fill” and the “Border” to “No Line.” This makes the Start Date bars invisible, creating the Gantt chart effect.
   • In the vertical axis (Task Names), right click and choose “Format Axis.”
   • Under Axis Options, check “Categories in reverse order.” This will display the tasks from top to bottom in the order they appear in the Task List.
   • Adjust the minimum and maximum values on the horizontal axis (dates) to encompass the entire project timeline. Determine the earliest start date and latest end date in your task list, then format the axis accordingly to avoid excessive whitespace. You might have to convert your dates to numbers using the =NUMBERVALUE() formula temporarily to determine the correct minimum and maximum values.
   • Add error bars. To add error bars, right click on the series that will be displayed as bars. Select ‘Format Data Series.’ On the Series Options tab, choose the vertical error bars. For ‘Direction’, pick ‘Plus’. For ‘End Style’, choose ‘No Cap’. For ‘Error Amount’, choose ‘Custom’ and ‘Specify Value’. In the positive error value box, enter the cell range containing the duration of each of the tasks.
4. Add Labels and Formatting: Add axis titles, chart titles, and adjust colors to improve readability.

Enhancing the Gantt Chart

• Conditional Formatting: Use conditional formatting to visually represent task status (e.g., green for completed, yellow for in progress, red for overdue). This makes it easier to identify potential problems at a glance. You can do this by adding a formula to the Gantt chart area referencing the status column in the Task List.
• Progress Bars: Add progress bars to the Gantt chart using a second data series that represents the “% Complete” for each task. This can be achieved by creating a helper column that calculates the portion of the task duration that represents completion, and then adding this column as a separate data series to the chart.
• Dependencies: Visualizing dependencies directly on the Gantt chart is difficult in Excel. Consider using color-coding or annotations to indicate dependencies. Alternatively, more advanced Excel-based project management tools utilize VBA scripting to dynamically update the Gantt chart based on predecessor relationships.

Managing Deadlines and Critical Path

Effective deadline management is crucial for keeping projects on track. Excel provides tools for tracking deadlines and identifying the critical path – the sequence of tasks that determines the shortest possible project duration.

Deadline Tracking

• Conditional Formatting for Overdue Tasks: Use conditional formatting to highlight tasks that are past their End Date and not yet marked as “Completed.”
• Deadline Alerts: Create formulas to calculate the number of days remaining until a task’s deadline and trigger alerts when deadlines are approaching. For example: `=IF(AND(TODAY()>End_Date, Status<>“Completed”),”OVERDUE”,IF(End_Date-TODAY()<=7,"Approaching Deadline",""))`
• Dashboard Indicators: Display key deadline metrics on the Dashboard worksheet, such as the number of overdue tasks, the number of tasks with approaching deadlines, and the overall percentage of tasks completed on time.

Identifying the Critical Path

While Excel doesn’t automatically calculate the critical path, you can identify it manually by:

1. Analyzing Task Dependencies: Carefully review the Predecessors column in the Task List to understand the sequence of tasks.
2. Calculating Task Float/Slack: Determine the amount of time each task can be delayed without affecting the project’s overall completion date. Tasks with zero float belong to the critical path. You can add “Early Start,” “Early Finish,” “Late Start,” and “Late Finish” columns to calculate float, using formulas based on start dates, duration, and dependencies. This requires careful setup and formula validation.
3. Highlighting Critical Tasks: Use conditional formatting to highlight tasks on the critical path, making them visually distinct.

Keep in mind that identifying the critical path manually in Excel can be time-consuming and prone to errors, especially for complex projects. Dedicated project management software offers automated critical path analysis.

Collaboration and Version Control

When multiple team members are working on the same Excel project management tracker, collaboration and version control are essential to avoid data conflicts and ensure data integrity.

• Shared Workbook: Excel allows sharing workbooks, enabling multiple users to edit the same file simultaneously. However, this feature has limitations and can lead to version control issues. It’s generally recommended for smaller teams.
• SharePoint or OneDrive: Storing the Excel file on a shared platform like SharePoint or OneDrive provides better version control and collaboration features. Team members can check out the file, make changes, and then check it back in, preventing conflicts.
• Clear Communication: Establish clear communication protocols to ensure team members are aware of updates and changes made to the tracker.
• Version Naming Convention: Use a consistent version naming convention (e.g., ProjectName_YYYYMMDD_v1.xlsx) to track different versions of the file.

Conclusion

An Excel-based project management tracker with a Gantt chart and deadline management capabilities can be a valuable tool for managing smaller projects or for teams new to formal project management methodologies. By carefully designing the spreadsheet structure, utilizing Excel’s charting and formatting features, and implementing effective collaboration practices, you can create a powerful tool to improve project organization, communication, and ultimately, project success. Remember that for larger, more complex projects, dedicated project management software may offer a more robust and scalable solution.
